buzzer/Alarms

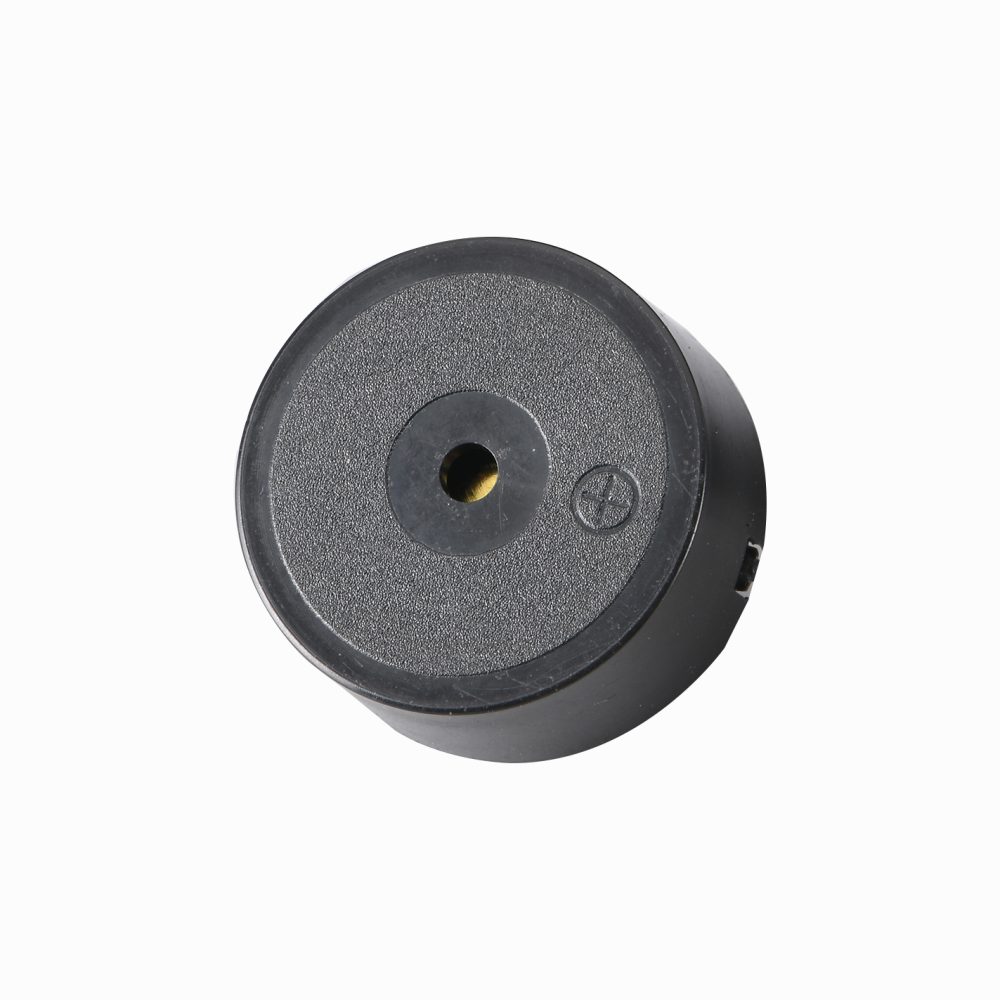

Piezoelectric Sounder for Self Drive
Self-drive piezoelectric sounder, high SPL wall-mounted design, 12V/24V/220V, IP65-IP67 waterproof for alarms and sirens.
Power Range2W-5W
TypePiezoelectric Sounder (Self Drive)
HousingABS / Aluminum
Voltage12V / 24V DC, 110V / 220V AC
MountingPanel / Wall Mount
ApplicationIndustrial Alarms, Fire Signal, Siren
Frequency (Hz)1500 - 3500Hz
Ingress ProtectionIP65 / IP67
Sound Pressure Level (dB)95 - 115dB
1. Self-Drive Sounder: Built-in drive circuit sounds on connection to DC or AC mains power without external components.
2. High Sound Pressure: Loud output suited to alarms, horns and evacuation signals in large areas.
3. Wall & Flange Mounting: Durable housing with mounting flanges for wall, pole or panel installation.
4. Waterproof Enclosure: IP65/IP67 sealing protects against rain and moisture for outdoor use.
5. AC & DC Options: 12V/24V DC and 110V/220V AC models cover most site requirements.
Application Scenes
Industrial Alarms, Fire Signal, Siren
| Power Range | 2W-5W |
|---|---|
| Type | Piezoelectric Sounder (Self Drive) |
| Housing | ABS / Aluminum |
| Voltage | 12V / 24V DC, 110V / 220V AC |
| Mounting | Panel / Wall Mount |
| Application | Industrial Alarms, Fire Signal, Siren |
| Frequency (Hz) | 1500 - 3500Hz |
| Ingress Protection | IP65 / IP67 |
| Sound Pressure Level (dB) | 95 - 115dB |
Request a Quote
Tell us about your requirements and our sales team will reply within 24 hours.
FAQ
Frequently Asked Questions
Q: What voltage and sound pressure levels are available?
We offer 1.5V, 3V, 5V, 12V, 24V, 110V and 220V versions with sound pressure from 55dB to 110dB. Higher SPL models for sirens and alarms are available.
Q: Can you customize frequency, size or output?
Yes, we support OEM/ODM customization of frequency (500Hz-25kHz), size, SPL, pins and lead length. Send us your drawing or parameters for a tailored solution.
Q: How is the buzzer packaged for transport?
Reel or tray packaging for SMD types, and anti-static bags with cartons for pin/lead types. Custom packaging with your brand is available for bulk orders.
