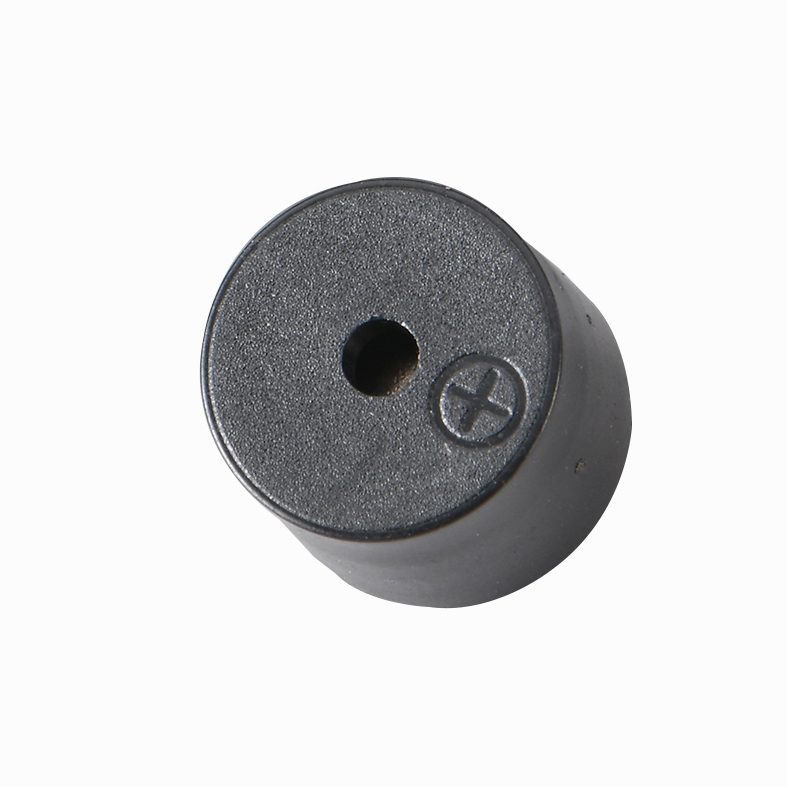

Piezoelectric Buzzer - Internal Driver
Self-drive piezo buzzer with built-in oscillator, instant sound on DC power, pin/lead mount, 55-110dB for indicators and alarms.
Power Range1W-2W
TypePiezoelectric Buzzer (Internal Driver / Self-Drive)
MountingPin / Wire Lead / Panel Mount
ApplicationAlarms, Inductors, Household Appliances
Rated Voltage3V / 5V / 12V / 24V / 220V
Frequency (Hz)2000 - 4000Hz
Operating Voltage1.5V - 32V
Sound Pressure Level (dB)80 - 110dB
1. Self-Drive Piezo Buzzer: The internal oscillator circuit produces sound immediately when DC voltage is applied.
2. No External Circuit Needed: Direct connection to a power source makes integration effortless in DIY and production designs.
3. High Volume Output: Up to 105-110dB models for demanding alarm and siren applications.
4. Voltage Versions: 3V, 5V, 12V, 24V and higher to match your supply rail.
5. Compact Encapsulation: Potted and through-hole packages protect the circuit and simplify assembly.
Application Scenes
Alarms, Inductors, Household Appliances
| Power Range | 1W-2W |
|---|---|
| Type | Piezoelectric Buzzer (Internal Driver / Self-Drive) |
| Mounting | Pin / Wire Lead / Panel Mount |
| Application | Alarms, Inductors, Household Appliances |
| Rated Voltage | 3V / 5V / 12V / 24V / 220V |
| Frequency (Hz) | 2000 - 4000Hz |
| Operating Voltage | 1.5V - 32V |
| Sound Pressure Level (dB) | 80 - 110dB |
Request a Quote
Tell us about your requirements and our sales team will reply within 24 hours.
FAQ
Frequently Asked Questions
Q: What is the operating temperature range of this buzzer?
The operating temperature range is typically -20\u2103 to +70\u2103, ensuring stable sound output in automotive and industrial environments.
Q: How to choose between self-drive and external-drive versions?
Self-drive (internal driver) types sound as soon as DC power is applied; external-drive types need a drive signal around 2000-4000Hz from your circuit. Our engineers will help you select the right type.
Q: What certifications do these buzzers comply with?
Our products are manufactured under ISO 9001 and are available with CE, RoHS, FCC and EMC certifications. Certification documents are provided on request.
