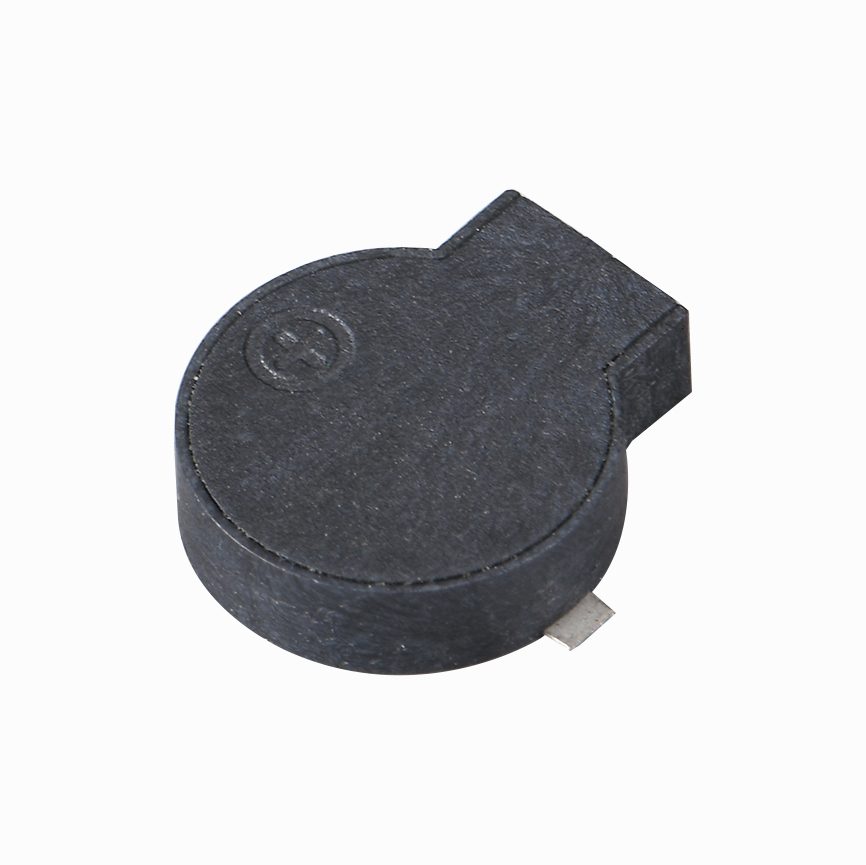

Piezo Buzzer
Multipurpose piezoelectric buzzer from 55dB to 110dB, 1.5V-220V, internal/external drive, IP54-IP67 waterproof options for all alerting needs.
Application Scenes
Alarms, Sirens, Indicators, Medical
| Power Range | 0.5W-3W |
|---|---|
| Type | Piezoelectric |
| Drive | Internal / External |
| Voltage | 1.5V / 3V / 5V / 12V / 24V / 110V / 220V |
| Mounting | SMD / Pin / Lead / Panel Mount |
| Application | Alarms, Sirens, Indicators, Medical |
| Ingress Protection | IP40 - IP67 (Optional) |
| Resonant Frequency (Hz) | 1000 - 4000Hz |
| Sound Pressure Level (dB) | 55 - 110dB |
Request a Quote
Tell us about your requirements and our sales team will reply within 24 hours.
Frequently Asked Questions
Q: What is the operating temperature range of this buzzer?
The operating temperature range is typically -20\u2103 to +70\u2103, ensuring stable sound output in automotive and industrial environments.
Q: How to choose between self-drive and external-drive versions?
Self-drive (internal driver) types sound as soon as DC power is applied; external-drive types need a drive signal around 2000-4000Hz from your circuit. Our engineers will help you select the right type.
Q: What certifications do these buzzers comply with?
Our products are manufactured under ISO 9001 and are available with CE, RoHS, FCC and EMC certifications. Certification documents are provided on request.
