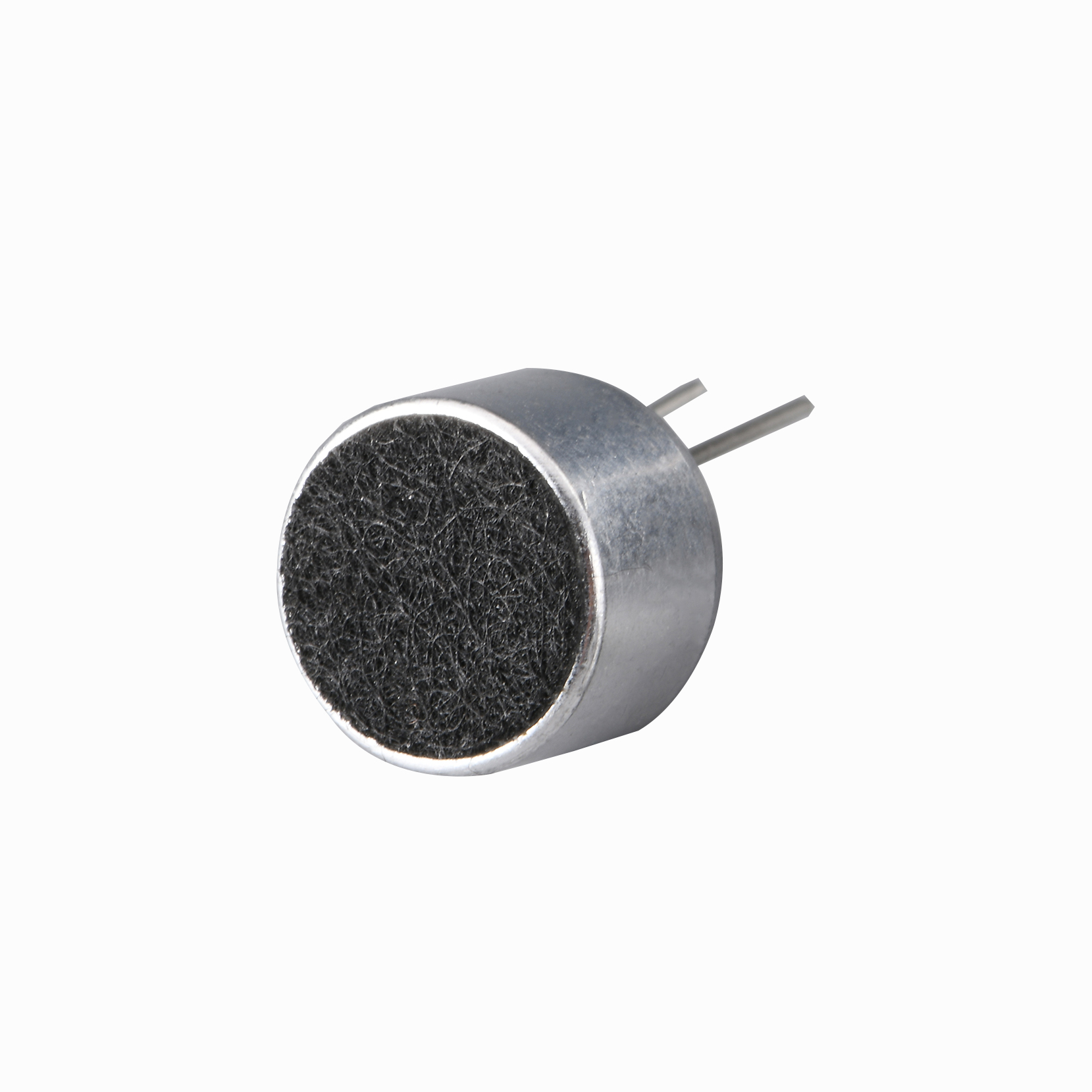

Omnidirectional Microphone Capsule
Omnidirectional microphone capsule, 16mm electret condenser, 360-degree pickup, -30dB, 20Hz-20kHz for conferencing, recording and ambient pickup.
Size16mm
TypeElectret Condenser
ApplicationConference, Recording, Ambient Pickup
DirectivityOmnidirectional
Sensitivity−30dB ± 2dB
Operation Voltage1 - 10V
Frequency Response20Hz - 20kHz
Size(min-max)-30dB ± 2dB
1. 360-Degree Pickup: Omnidirectional pattern captures sound equally from all directions for conference and ambient recording.
2. High Sensitivity: -30dB output works well with standard preamps and audio inputs.
3. Wide Frequency Response: 20Hz-20kHz preserves natural tonality for music and speech.
4. Low Power: Operates from 1-10V supply for battery-powered devices.
5. Versatile Mounting: Solder terminals and insert-mount options for flexible integration.
Application Scenes
Conference, Recording, Ambient Pickup
| Size | 16mm |
|---|---|
| Type | Electret Condenser |
| Application | Conference, Recording, Ambient Pickup |
| Directivity | Omnidirectional |
| Sensitivity | −30dB ± 2dB |
| Operation Voltage | 1 - 10V |
| Frequency Response | 20Hz - 20kHz |
| Size(min-max) | -30dB ± 2dB |
Request a Quote
Tell us about your requirements and our sales team will reply within 24 hours.
FAQ
Frequently Asked Questions
Q: What is the typical lifespan of these capsules?
With proper use, electret and condenser capsules last 5-10 years; MEMS capsules have essentially unlimited lifespan.
Q: What is your minimum order quantity (MOQ)?
Our standard MOQ is 500 pieces per model. Samples are available for testing and evaluation before bulk orders.
Q: Do you offer dynamic microphone capsules for karaoke?
Yes, dynamic capsules with cardioid pattern are popular for karaoke, stage performance and vocal applications.
