buzzer/Alarms

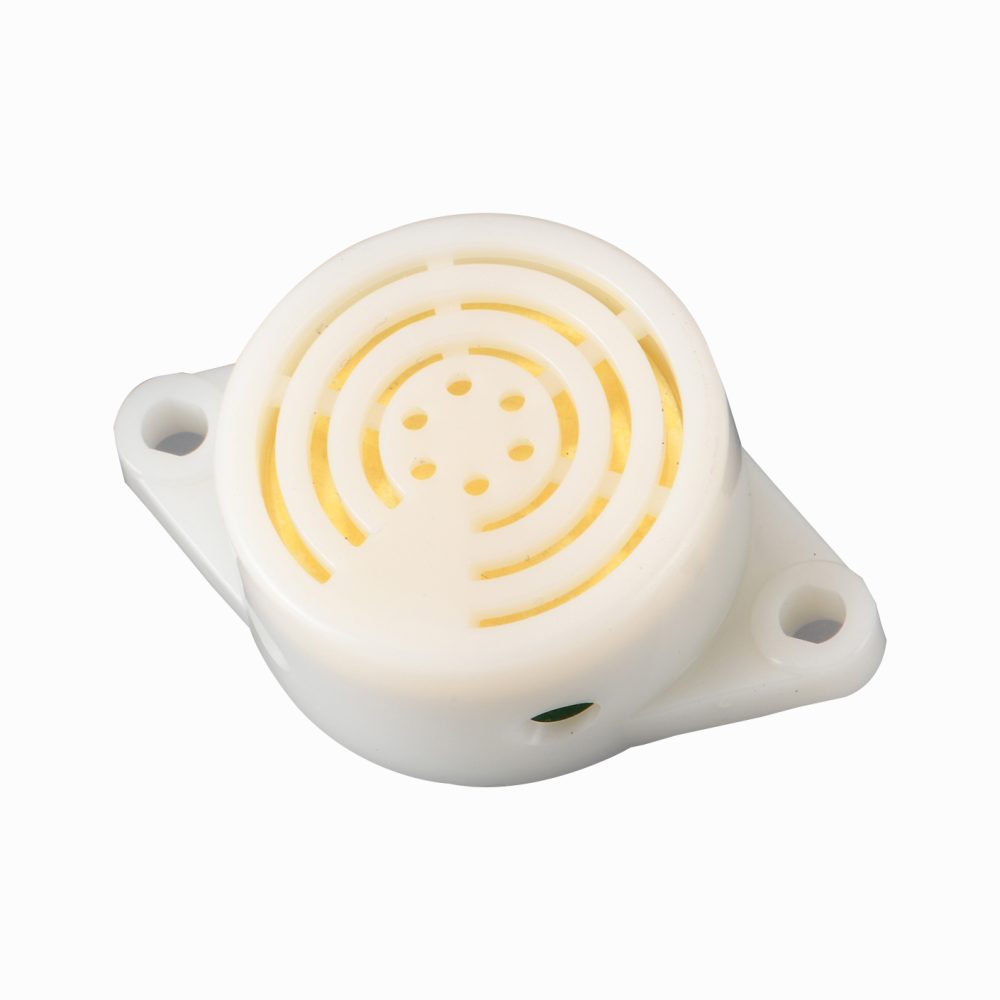

Musical Buzzer
Multitone musical buzzer/alarm with pleasant alternating melodies, selectable continuous or intermittent output for appliances and devices.
Power Range0.5W-1.5W
TypeMelody / Multitone Buzzer
HousingEncapsulated ABS
Sound ModeContinuous / Intermittent
ApplicationAppliances, Toys, Instrument Alerts
TerminationWire Lead / Pin
Voltage Range3V - 24V DC
Sound Pressure Level (dB)75 - 90dB
1. Pleasant Multitone Alert: Generates smooth musical tones instead of a harsh buzz, ideal for consumer appliances and instruments.
2. Selectable Modes: Continuous and intermittent melody options let you differentiate between events.
3. Wide Voltage Range: Works with 3V-24V DC supply for compatibility across platforms.
4. Compact Encapsulated Housing: Sealed case protects the drive circuit from dust and handling.
5. Simple Drive Interface: Two-wire connection activates the melody, reducing design effort.
Application Scenes
Appliances, Toys, Instrument Alerts
| Power Range | 0.5W-1.5W |
|---|---|
| Type | Melody / Multitone Buzzer |
| Housing | Encapsulated ABS |
| Sound Mode | Continuous / Intermittent |
| Application | Appliances, Toys, Instrument Alerts |
| Termination | Wire Lead / Pin |
| Voltage Range | 3V - 24V DC |
| Sound Pressure Level (dB) | 75 - 90dB |
Request a Quote
Tell us about your requirements and our sales team will reply within 24 hours.
FAQ
Frequently Asked Questions
Q: What is the typical lead time for this buzzer?
Standard lead time is 7-15 days after sample approval; mass production depends on order quantity and is confirmed by our sales team before ordering.
Q: Do you provide free samples for evaluation?
Yes. We provide free samples for evaluation, and the buyer only pays express shipping. Contact us with your required voltage, size and sound level.
Q: Can this buzzer work in continuous or intermittent mode?
Most active and self-drive types support both continuous and intermittent driving; please specify the duty cycle requirement so we can recommend the correct model.
